YSI 9800 Photometer
- Free ground shipping
- Expedited repair and warranty service
- Lifetime technical support
- More
- Waterproof IP-67 rating even when using a USB connection to power the instrument
- Large, full-color touchscreen display works even with wet or gloved hands
- Choose from 100+ tests or define your own

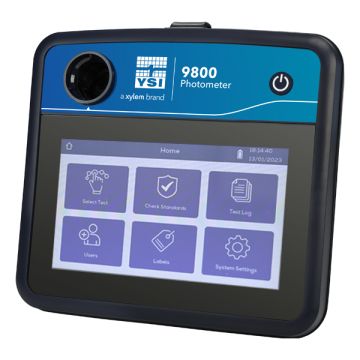

The YSI 9800 is a portable, multiparameter photometer for quickly and accurately measuring over 30 water quality parameters. For use in the field or lab and featuring a large touchscreen display and an intuitive user interface with onscreen instructions, the 9800 Photometer is the ideal instrument for users of any level of experience operating in any environment!
Rugged and Modern
Waterproof IP-67 rating even when using a USB connection to power the instrument
Impact tested
Abrasion-resistant and chemical-resistant coating
Large, full-color touchscreen display works even with wet or gloved hands
Onscreen step-by-step test instructions
Comfrotable, ergonomic design
Smart, Versatile
Choose from 100+ tests or define your own
Multiple languages, including English, French, Spanish, and Mandarin
User-selectable options for test units, sample numbers, and dilution factors
Automatically stores all test results, data IDs, and user information for data compliance and traceability
Simple Data Management via USB connectivity also powers the instrument
User-upgradeable software via USB connection to PC
1,000 Data Set Memory
Sustainable
Fully serviceable and repairable over the life of the instrument
Carrying case composed of 100% recycled materials
Longer-lasting battery life (up to 5,000 tests per set)
| Instrument Type | Multiparameter Photometer |
| Wavelengths | 430 nm, 465 nm, 530 nm, 575 nm, 620 nm |
| Accuracy | ± 1%T (transmission) |
| Display | Large, Color LCD |
| User Interface | Touch screen with walkthrough text instructions |
| Dimensions |
Width: 211 mm (8.3 in)
Length: 195 mm (7.7 in)
Height: 52 mm (2.0 in)
|
| Weight | 0.85 kg (1.87 lbs) |
| IP Rating | IP-67 |
| Power Supply | 6x AA Batteries or through USB |
| Connectivity | Connect to PC via USB cable |
| Memory Capacity | 1,000 data sets |
| Battery Life | 5,000 tests on one set of batteries |
| Languages | English, French, Spanish, and Chinese (Simplified) |
| Certifications | EN61326, EN61010, IP67, and EN60068-2-78 |
- (1) 9800 Photometer
- (1) Dilution tube
- (1) Syringe (luer slip, 10mL)
- (1) Polishing cloth
- (1) Absorbent cloth
- (1) Test tube brush
- (10) Test tubes
- (10) Stir rods
- (1) USB Type A to C cable
- (1) Reagent box
- (1) Carrying case
- (1) Quick Start Guide
- Waterproof IP-67 rating even when using a USB connection to power the instrument
- Large, full-color touchscreen display works even with wet or gloved hands
- Choose from 100+ tests or define your own
The YSI 9800 is a portable, multiparameter photometer for quickly and accurately measuring over 30 water quality parameters. For use in the field or lab and featuring a large touchscreen display and an intuitive user interface with onscreen instructions, the 9800 Photometer is the ideal instrument for users of any level of experience operating in any environment!
Rugged and Modern
Waterproof IP-67 rating even when using a USB connection to power the instrument
Impact tested
Abrasion-resistant and chemical-resistant coating
Large, full-color touchscreen display works even with wet or gloved hands
Onscreen step-by-step test instructions
Comfrotable, ergonomic design
Smart, Versatile
Choose from 100+ tests or define your own
Multiple languages, including English, French, Spanish, and Mandarin
User-selectable options for test units, sample numbers, and dilution factors
Automatically stores all test results, data IDs, and user information for data compliance and traceability
Simple Data Management via USB connectivity also powers the instrument
User-upgradeable software via USB connection to PC
1,000 Data Set Memory
Sustainable
Fully serviceable and repairable over the life of the instrument
Carrying case composed of 100% recycled materials
Longer-lasting battery life (up to 5,000 tests per set)
| Instrument Type | Multiparameter Photometer |
| Wavelengths | 430 nm, 465 nm, 530 nm, 575 nm, 620 nm |
| Accuracy | ± 1%T (transmission) |
| Display | Large, Color LCD |
| User Interface | Touch screen with walkthrough text instructions |
| Dimensions |
Width: 211 mm (8.3 in)
Length: 195 mm (7.7 in)
Height: 52 mm (2.0 in)
|
| Weight | 0.85 kg (1.87 lbs) |
| IP Rating | IP-67 |
| Power Supply | 6x AA Batteries or through USB |
| Connectivity | Connect to PC via USB cable |
| Memory Capacity | 1,000 data sets |
| Battery Life | 5,000 tests on one set of batteries |
| Languages | English, French, Spanish, and Chinese (Simplified) |
| Certifications | EN61326, EN61010, IP67, and EN60068-2-78 |
- (1) 9800 Photometer
- (1) Dilution tube
- (1) Syringe (luer slip, 10mL)
- (1) Polishing cloth
- (1) Absorbent cloth
- (1) Test tube brush
- (10) Test tubes
- (10) Stir rods
- (1) USB Type A to C cable
- (1) Reagent box
- (1) Carrying case
- (1) Quick Start Guide
