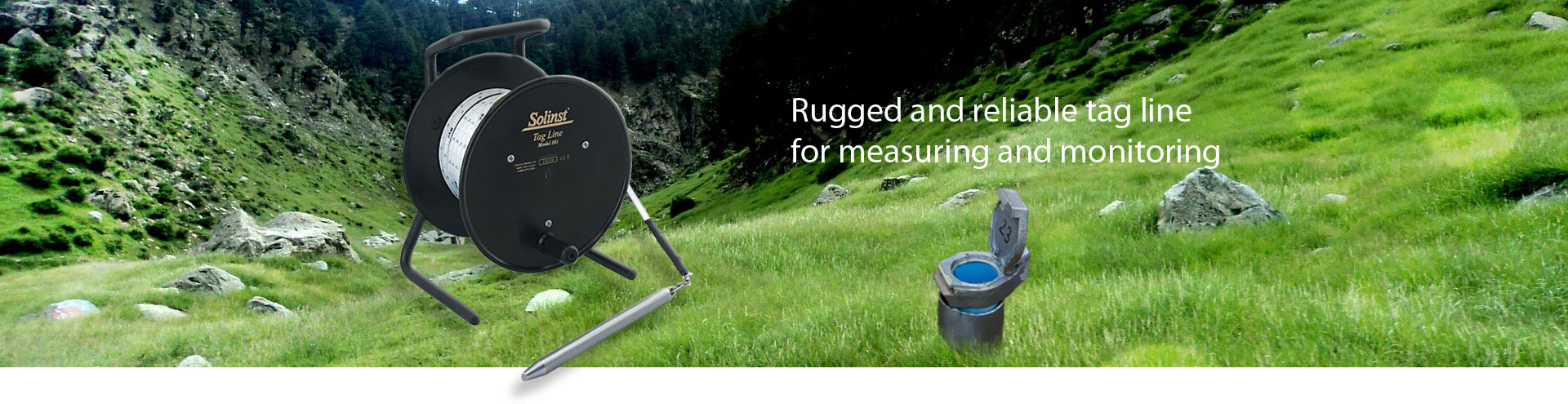

Solinst Model 103 Flat Tape Tag Lines

The Solinst Model 103 Flat Tape Tag Line is a multi-purpose solution for pump deployments, measuring depth to the bottom of a well, or support line for down-well samplers and data loggers.
Starting At $418.00
Stock Check Availability
Solinst Model 103 Flat Tape Tag Lines
Key Features
  • Markings are laser etched every 1/100 ft or each mm
  • Standard tag weight measures 1.5 lbs and is 3/4" x 12" (included)
  • Includes tape guide to protect the tape from damage on rough edges

Overview
The Solinst Tag Line uses a weight attached to a laser-marked flat tape and is principally designed for use during the installation of monitoring wells. The Tag Line also provides a simple method to measure the depth to the bottom of a well. It is also ideal as a multipurpose marked support cable.

Design
The Model 103 Flat Tape Tag Line uses a 3/8" (10 mm) PVDF flat tape. The tape has a break strength of greater than 220 lbs (100 kg). It has a thick dog bone design that prevents adherence to wet surfaces and allows it to hang straight. The well tape comes with laser markings every 1/100 ft. or each millimeter. Lengths are 100 ft to 1000 ft. (30 m to 300 m).

The standard stainless steel tag weight is 1.5 lbs (0.68 kg) and measures 3/4" x 1 ft. (19 mm x 30 cm). A narrow tag weight, 1/2" x 1 ft. (13 mm x 30 cm), weighing 0.65 lbs (0.30 kg), is also an option. Tag weights have tapered ends to minimize hang-ups during deployment and return to the surface and can be clipped on and off the tape. This allows the use of the reel-mounted marked well tape for other uses, such as bailer or pump, and packer deployment.

  • (1) Solinst Model 103 Tag line mounted on reel
  • (1) 3/4" x 1' tag weight
  • (1) Tape guide
Questions & Answers
No Questions
Did you find what you were looking for?
Key Features
  • Markings are laser etched every 1/100 ft or each mm
  • Standard tag weight measures 1.5 lbs and is 3/4" x 12" (included)
  • Includes tape guide to protect the tape from damage on rough edges

Overview
The Solinst Tag Line uses a weight attached to a laser-marked flat tape and is principally designed for use during the installation of monitoring wells. The Tag Line also provides a simple method to measure the depth to the bottom of a well. It is also ideal as a multipurpose marked support cable.

Design
The Model 103 Flat Tape Tag Line uses a 3/8" (10 mm) PVDF flat tape. The tape has a break strength of greater than 220 lbs (100 kg). It has a thick dog bone design that prevents adherence to wet surfaces and allows it to hang straight. The well tape comes with laser markings every 1/100 ft. or each millimeter. Lengths are 100 ft to 1000 ft. (30 m to 300 m).

The standard stainless steel tag weight is 1.5 lbs (0.68 kg) and measures 3/4" x 1 ft. (19 mm x 30 cm). A narrow tag weight, 1/2" x 1 ft. (13 mm x 30 cm), weighing 0.65 lbs (0.30 kg), is also an option. Tag weights have tapered ends to minimize hang-ups during deployment and return to the surface and can be clipped on and off the tape. This allows the use of the reel-mounted marked well tape for other uses, such as bailer or pump, and packer deployment.

  • (1) Solinst Model 103 Tag line mounted on reel
  • (1) 3/4" x 1' tag weight
  • (1) Tape guide
Questions & Answers
No Questions
Did you find what you were looking for?

Select Options

  Products 0 Item Selected
Part #
Product Description
Price
Stock
Select
Solinst Model 103 Flat Tape Tag Lines
110568
Model 103 flat tape tag line with 3/4" x 12" weight & imperial increments, 100 ft.
$418.00
Check Availability
$418.00
Solinst Model 103 Flat Tape Tag Lines
110574
Model 103 flat tape tag line with 3/4" x 12" weight & metric increments, 30m
$418.00
Check Availability
$418.00
Solinst Model 103 Flat Tape Tag Lines
110569
Model 103 flat tape tag line with 3/4" x 12" weight & imperial increments, 200 ft.
$589.00
Check Availability
$589.00
Solinst Model 103 Flat Tape Tag Lines
110575
Model 103 flat tape tag line with 3/4" x 12" weight & metric increments, 60m
$589.00
Check Availability
$589.00
Solinst Model 103 Flat Tape Tag Lines
110570
Model 103 flat tape tag line with 3/4" x 12" weight & imperial increments, 300 ft.
$760.00
Check Availability
$760.00
Solinst Model 103 Flat Tape Tag Lines
110576
Model 103 flat tape tag line with 3/4" x 12" weight & metric increments, 100m
$760.00
Check Availability
$760.00
Solinst Model 103 Flat Tape Tag Lines
110571
Model 103 flat tape tag line with 3/4" x 12" weight & imperial increments, 500 ft.
$1,134.30
Check Availability
$1,134.30
Solinst Model 103 Flat Tape Tag Lines
110577
Model 103 flat tape tag line with 3/4" x 12" weight & metric increments, 150m
$1,134.30
Check Availability
$1,134.30
Solinst Model 103 Flat Tape Tag Lines
110572
Model 103 flat tape tag line with 3/4" x 12" weight & imperial increments, 750 ft.
$1,561.80
Check Availability
$1,561.80
Solinst Model 103 Flat Tape Tag Lines
110578
Model 103 flat tape tag line with 3/4" x 12" weight & metric increments, 250m
$1,561.80
Check Availability
$1,561.80
Solinst Model 103 Flat Tape Tag Lines
110573
Model 103 flat tape tag line with 3/4" x 12" weight & imperial increments, 1000 ft.
$1,989.30
Check Availability
$1,989.30
Solinst Model 103 Flat Tape Tag Lines
110579
Model 103 flat tape tag line with 3/4" x 12" weight & metric increments, 300m
$1,989.30
Check Availability
$1,989.30
