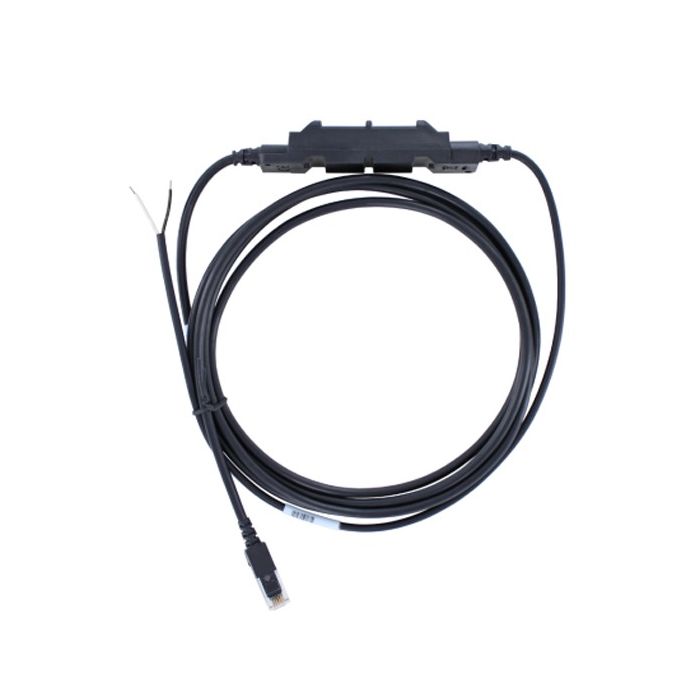

HOBO RX Runtime Smart Sensor

The RX Runtime Smart Sensor measures and records the percent ON of any AC-powered device with an AC current switch and time ON (closed) of contact closures over the logging interval.
Your Price $110.00
Stock Check Availability
Key Features
  • Works with all HOBO RX stations (not compatible with H21, H22-001 or U30 stations)
  • Automatically communicates configuration data to the station
  • 1-second runtime resolution
The RX Runtime Smart Sensor measures the percent ON of any AC-powered device with an AC current switch, and time ON (closed) of contact closures. Ideal for equipment runtime monitoring, boiler efficiency monitoring, pump monitoring, and engine monitoring. This sensor is compatible with HOBO RX monitoring stations.

Input Sampling Period: 1 second
External Contact Input: Solid state switch closure, logic driven voltage output, or open/closed mechanical switch
Preferred Switch State: Normally open
Solid State Switch Closure: Input Low: < 10 KΩ; Input High: > 300 KΩ
Logic Signal Level: Logic 0: < 0.4 V DC, Logic 1: > 2.5 V DC
Internal Weak Pull-Up: 100 KΩ
Input Range: 0 to 3.6 V
User Connection: 24 AWG wires, 2 leads: white(+), black(-)
Operating Temperature Range: -40° to 75°C (-40° to 167°F)
Time Accuracy: ±4 seconds due to potential clock differences between the sensor and the station. Note that longer logging intervals can result in the maximum error.
Overall Cable Length: 6.5 m (21.3 ft.)
Housing Materials: Weatherproof polyamide housing for smart sensor adapter
Length of Smart Sensor Cable: 50 cm (1.6 ft.)
Weight: 200 g (7.06 oz)
Number of Data Channels: 2
Bits per Sample: 12 bits for channel logging runtime as percent; 16 bits for channel logging runtime in seconds
Measurement Averaging Option: No

  • RX Runtime Smart Sensor with 6m cable
  • 2 wire nuts
Questions & Answers
No Questions
Did you find what you were looking for?
Key Features
  • Works with all HOBO RX stations (not compatible with H21, H22-001 or U30 stations)
  • Automatically communicates configuration data to the station
  • 1-second runtime resolution
The RX Runtime Smart Sensor measures the percent ON of any AC-powered device with an AC current switch, and time ON (closed) of contact closures. Ideal for equipment runtime monitoring, boiler efficiency monitoring, pump monitoring, and engine monitoring. This sensor is compatible with HOBO RX monitoring stations.

Input Sampling Period: 1 second
External Contact Input: Solid state switch closure, logic driven voltage output, or open/closed mechanical switch
Preferred Switch State: Normally open
Solid State Switch Closure: Input Low: < 10 KΩ; Input High: > 300 KΩ
Logic Signal Level: Logic 0: < 0.4 V DC, Logic 1: > 2.5 V DC
Internal Weak Pull-Up: 100 KΩ
Input Range: 0 to 3.6 V
User Connection: 24 AWG wires, 2 leads: white(+), black(-)
Operating Temperature Range: -40° to 75°C (-40° to 167°F)
Time Accuracy: ±4 seconds due to potential clock differences between the sensor and the station. Note that longer logging intervals can result in the maximum error.
Overall Cable Length: 6.5 m (21.3 ft.)
Housing Materials: Weatherproof polyamide housing for smart sensor adapter
Length of Smart Sensor Cable: 50 cm (1.6 ft.)
Weight: 200 g (7.06 oz)
Number of Data Channels: 2
Bits per Sample: 12 bits for channel logging runtime as percent; 16 bits for channel logging runtime in seconds
Measurement Averaging Option: No

  • RX Runtime Smart Sensor with 6m cable
  • 2 wire nuts
