AMS Quick Connect Flighted Auger Kit
- Expedited repair and warranty service
- Lifetime technical support
- More
- Drill access holes up to 9 feet deep
- Collect 1 1/2" x 6" soil samples
- More extensions may be added for deeper depths
Overview
The AMS 2" Flighted Auger Kits are equipped to drill access holes up to 9' and collect soil samples into liners using the 1-1/2" X 6" Soil Core Sampler. The male/female Hex Quick Pin connections make adding and disconnecting Flighted Extensions easier than ever before, and they allow for reverse augering! Hex Quick Pin connections also prevent the Flighted Extensions from binding or locking up while augering.
Accessories
A Carbide Tip is available for hard and compacted clay soil conditions. Additional extensions may be added to obtain deeper depths. The Regular Slide Hammer that is included allows you to hammer in your Soil Core Sampler. Slide Hammers can also assist with retrieving your sampler by its reverse hammering capabilities. There are 2" Stainless Steel Flighted Auger Kits available along with kits that contain a SDS Max Rotary Hammer Drill. Flighted Auger Kits can also be operated with certain gas-powered drills.
*Please make sure any AMS samplers you intend to use together share a common connection type.

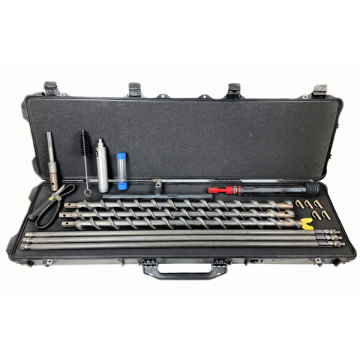

- #214.20 - (1) 5/8" Threaded Male to SDS Max Drill Adapter
- #404.41 - (1) 1-1/2" Soil Core Sampler Cap, 5/8" Thread
- #404.40 - (1) 1-1/2" X 6" Soil Core Sampler Cup
- #405.08 - (1) 1-1/2" X 6" Plastic Liner
- #418.08 - (2) 1-1/2" Plastic End Cap
- #20045 - (3) 2" X 3' Flighted Extension, Hex Quick Pin
- #20046 - (1) 2" Flighted Auger Tip, Hex Quick Pin
- #53265 - (1) Quick Connect/ Hex Quick Pin Female Thread to 5/8" Female Adapter
- #58504 - (1) 18" Rubber Coated Cross Handle, Hex Quick Pin
- #400.96 - (1) Compact Slide Hammer, 5/8" Thread
- #408.03 - (3) 4' Extension, 5/8" Thread
- #421.29 - (1) Universal Slip Wrench
- #430.11 - (1) 1-1/2" X 12" Nylon Brush
- #12767 - (5) Heat Treated U-Clip
- #430.01 - (1) 4' Deluxe Carrying Case 1750 Black
- Drill access holes up to 9 feet deep
- Collect 1 1/2" x 6" soil samples
- More extensions may be added for deeper depths
Overview
The AMS 2" Flighted Auger Kits are equipped to drill access holes up to 9' and collect soil samples into liners using the 1-1/2" X 6" Soil Core Sampler. The male/female Hex Quick Pin connections make adding and disconnecting Flighted Extensions easier than ever before, and they allow for reverse augering! Hex Quick Pin connections also prevent the Flighted Extensions from binding or locking up while augering.
Accessories
A Carbide Tip is available for hard and compacted clay soil conditions. Additional extensions may be added to obtain deeper depths. The Regular Slide Hammer that is included allows you to hammer in your Soil Core Sampler. Slide Hammers can also assist with retrieving your sampler by its reverse hammering capabilities. There are 2" Stainless Steel Flighted Auger Kits available along with kits that contain a SDS Max Rotary Hammer Drill. Flighted Auger Kits can also be operated with certain gas-powered drills.
*Please make sure any AMS samplers you intend to use together share a common connection type.
- #214.20 - (1) 5/8" Threaded Male to SDS Max Drill Adapter
- #404.41 - (1) 1-1/2" Soil Core Sampler Cap, 5/8" Thread
- #404.40 - (1) 1-1/2" X 6" Soil Core Sampler Cup
- #405.08 - (1) 1-1/2" X 6" Plastic Liner
- #418.08 - (2) 1-1/2" Plastic End Cap
- #20045 - (3) 2" X 3' Flighted Extension, Hex Quick Pin
- #20046 - (1) 2" Flighted Auger Tip, Hex Quick Pin
- #53265 - (1) Quick Connect/ Hex Quick Pin Female Thread to 5/8" Female Adapter
- #58504 - (1) 18" Rubber Coated Cross Handle, Hex Quick Pin
- #400.96 - (1) Compact Slide Hammer, 5/8" Thread
- #408.03 - (3) 4' Extension, 5/8" Thread
- #421.29 - (1) Universal Slip Wrench
- #430.11 - (1) 1-1/2" X 12" Nylon Brush
- #12767 - (5) Heat Treated U-Clip
- #430.01 - (1) 4' Deluxe Carrying Case 1750 Black
