Airmar EchoRange SS510 Smart Sonar Depth Sensor

The Airmar EchoRange SS510 Smart Sensor is a low-cost depth sonar for bridge scour monitoring, sediment transfer studies, and portable hydrographic surveys.
Starting At $949.99
Stock 4 AVAILABLE
Airmar EchoRange SS510 Smart Sonar Depth Sensor
Key Features
  • Embedded transceiver with digital signal processing
  • Outputs depth & temperature using NMEA 0183 data output

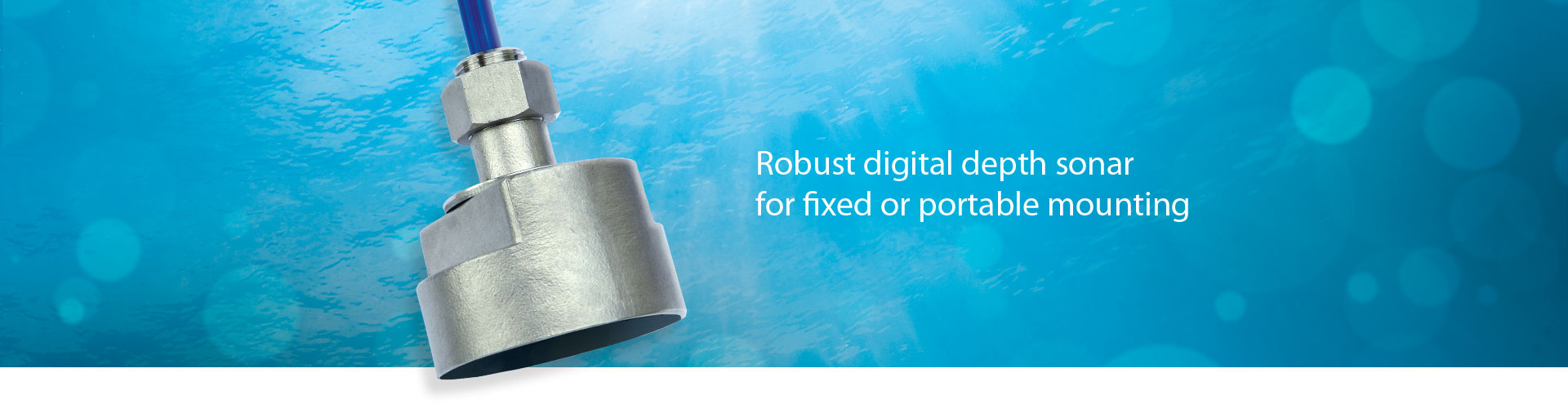

  • Robust 316 stainless steel housing for fixed or portable mounting

Overview
Pairing the Airmar EchoRange SS510 Smart Sensor with a computer or data logger provides a low-cost, portable hydrographic survey system. The EchoRange can also be fixed to a bridge abutment or pillar for unattended monitoring of scouring conditions.

Data Collection
The sensor digitally processes depth and water temperature signals to communicate data via NMEA 0183 protocol. Using NMEA 0183, the sensor easily interfaces with computers or data collection platforms with a data output rate of up to 10 times per second. The EchoRange is constructed with a robust stainless steel housing and has a measurement range from 0.4m to 200m with 0.01m resolution.

  • Depth Reading Range: 0.4m to 200m
  • Depth Resolution: 0.01m
  • Depth Precision: 0.25% at full range
  • Frequency: 200 kHz
  • Beam Angle:
  • Temperature Sensor Accuracy: +/-0.05° C
  • Temperature Resolution: 0.09° C
  • Supply Voltage: 9 VDC to 40 VDC
  • Average Current Draw: 150mA @ 13.6V
  • Power & Data Cable: C304, 4 twisted shielded pairs, 20m
  • NMEA0183 Baud Rate: 4,800
Questions & Answers
How many conductors are in the data cable and what color is the cable jacket?
The data cable includes 4 twisted shielded pair conductors and the jacket is black in color.
What is the output protocol of this sensor?
The EchoRange SS510 sensor transfers data using the NMEA 0183 protocol via RS-422.
How is sound speed and draft set on the Airmar EchoRange SS510 sensor?
Page 28 of the Airmar EchoRange SS510 Smart Sonar Depth Sensor manual (www.fondriest.com/pdf/airmar_ss510_manual.pdf) describes how to set sound speed and draft via NEMA commands through a terminal program.
What do the wire colors on the Airmar EchoRange SS510 Smart Sonar Depth Sensor cable with flying leads mean?
The wiring diagram can be found on the cables as well as in the wiring guide here: https://www.fondriest.com/pdf/airmar_ss510_wiring.pdf
Did you find what you were looking for?
Key Features
  • Embedded transceiver with digital signal processing
  • Outputs depth & temperature using NMEA 0183 data output
  • Robust 316 stainless steel housing for fixed or portable mounting

Overview
Pairing the Airmar EchoRange SS510 Smart Sensor with a computer or data logger provides a low-cost, portable hydrographic survey system. The EchoRange can also be fixed to a bridge abutment or pillar for unattended monitoring of scouring conditions.

Data Collection
The sensor digitally processes depth and water temperature signals to communicate data via NMEA 0183 protocol. Using NMEA 0183, the sensor easily interfaces with computers or data collection platforms with a data output rate of up to 10 times per second. The EchoRange is constructed with a robust stainless steel housing and has a measurement range from 0.4m to 200m with 0.01m resolution.

  • Depth Reading Range: 0.4m to 200m
  • Depth Resolution: 0.01m
  • Depth Precision: 0.25% at full range
  • Frequency: 200 kHz
  • Beam Angle:
  • Temperature Sensor Accuracy: +/-0.05° C
  • Temperature Resolution: 0.09° C
  • Supply Voltage: 9 VDC to 40 VDC
  • Average Current Draw: 150mA @ 13.6V
  • Power & Data Cable: C304, 4 twisted shielded pairs, 20m
  • NMEA0183 Baud Rate: 4,800
Questions & Answers
How many conductors are in the data cable and what color is the cable jacket?
The data cable includes 4 twisted shielded pair conductors and the jacket is black in color.
What is the output protocol of this sensor?
The EchoRange SS510 sensor transfers data using the NMEA 0183 protocol via RS-422.
How is sound speed and draft set on the Airmar EchoRange SS510 sensor?
Page 28 of the Airmar EchoRange SS510 Smart Sonar Depth Sensor manual (www.fondriest.com/pdf/airmar_ss510_manual.pdf) describes how to set sound speed and draft via NEMA commands through a terminal program.
What do the wire colors on the Airmar EchoRange SS510 Smart Sonar Depth Sensor cable with flying leads mean?
The wiring diagram can be found on the cables as well as in the wiring guide here: https://www.fondriest.com/pdf/airmar_ss510_wiring.pdf
Did you find what you were looking for?

Select Options

  Products 0 Item Selected
Part #
Product Description
Price
Stock
Select
Airmar EchoRange SS510 Smart Sonar Depth Sensor
SS510ER-200-25
EchoRange SS510 smart sonar depth sensor with bare wires, 7.6m cable
$949.99
4 Available
$949.99
Airmar EchoRange SS510 Smart Sonar Depth Sensor
SS510ER-200-66
EchoRange SS510 smart sonar depth sensor with bare wires, 20m cable
$1,181.78
Check Availability
$1,181.78
